      400*800mm SINGLE AXIS NC SURFACE GRINDING MACHINE SG4080S/SG4080SD

      German original design, using high-strength cast iron, with strong rigidity, makes the machine run more stable and maintain better accuracy;

      Basic Information

      Grinder Type Metal, Ceramics Flat Surface Automatic Grade Automatic
      Certification CE, ISO 9001 Precision High Precision
      Table Size 400*800mm Condition New
      Total Power 9kw Floor Space 3600*2600mm
      Cross Feed Motor Siemens Servo Motor Vertical Motor Siemens Servo Motor
      Vertical Screw P4 Grade Ball Screw Cross Feed Screw Ball Screw
      PLC Brand Siemens PLC XMovement Hydraulic
      Spindle Bearing NSK P4 Grade Spindle Motor ABB/Siemens
      Transport Package Wooden Case Main Electrics Schneider Electrics
      Origin China Specification 2790*2225*2195
      Trademark ZODE HS Code 8460191000

      Product Description

      A.Pictures

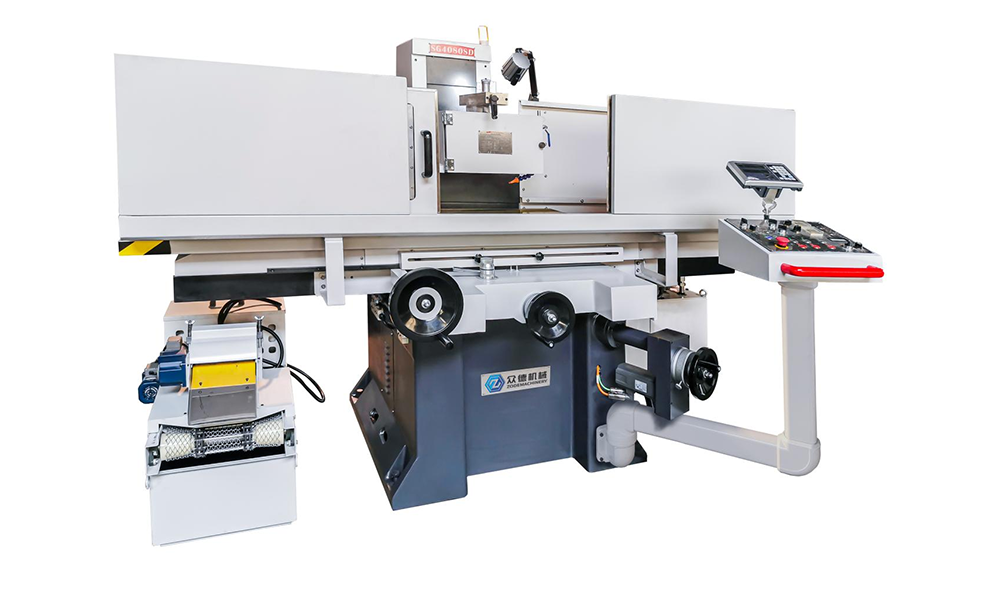

      400*800mm SINGLE AXIS NC SURFACE GRINDING MACHINE SG4080S/SG4080SD

      Control Panel:

      S Model Control Panel

      (S Model Control Panel)

      SD Control Panel

      (SD Control Panel)

      SD SERIES PROGRAMMING CYCLE

      Chart

      S stands for simple program control, three-axis automatic, longitudinal hydraulic drive, cross feed and vertical axes are driven by servo motors.

      (Automatic down feed, the minimum down feed is 0.002mm, and there is an automatic lifting function).

      SD stands for high configuration program control, three-axis automatic, longitudinal hydraulic drive,cross feed and vertical axes are driven by servo motors, and equipped with touch screen to set parameters.

      (Automatic down feed, the minimum down feed is 0.001mm, and has the functions of rough grinding, fine grinding, automatic lifting and spark out grinding).

      Machine Control

      (The SD series can add optional features: the X-axis position can be displayed on the touch screen and its travel can be controlled.)

      B.Parameters

      Parameters Unit SG4080S SG4080SD
      Working Surface of Table mm 400*800 (16"*32") 400*800 (16"*32")
      Max.Table Travel mm 850 850
      Max.Cross Travel mm 440 440
      Distance Between Table Surface and Spindle Center mm 580 580
      Max.Table Load kgs 700 700
      T-Solt(Number*Width) mm 3*14 3*14
      Table Speed m/min 5~25 5~25
      Crossfeed Handwheel 1gard mm 0.02 0.02
      1 rev 5 5
      Automatic Crossfeed of Saddle mm 0.01~12 0.01~12
      Automatic Crossfeed Rate mm/min 10~800 10~800
      Power Cross Feed mm/min 1500 1500
      Grinding Wheel Dimensions mm 355*40*127 355*40*127
      Spindle Speed 50HZ rpm 1450 1450
      60HZ 1740 1740
      Vertical Handwheel 1gard mm 0.001 0.001
      1 rev 0.5 0.1
      Automatic Down Feed Rate mm 0.002/0.004/0.006/0.012/0.02/0.03/0.04/0.05 0.001~0.1
      Power Head Increment mm/min 400 1000
      Spindle Motor kw 5.5 5.5
      Floor Space mm 3600*2600 3600*2600
      Packing Dimensions mm 2790*2225*2195 2790*2225*2195
      Net Weight kgs 3010 3050
      Gross Weight kgs 3350 3350

      C.Standard Accessories

      1 Grinding wheel 2 Wheel flange
      3 Wheel balancing base 4 Wheel balancing arbor
      5 Extractor 6 Diamond dresser
      7 Leveling pad 8 Anchor bolt
      9 Tool box with tools 10 Electricmagneticchuck

      Standard Accessories

      D.Feature

      1.Well designed cast iron structure provides excellent dampening

      2.Flange mount spindle cartridge for superior side grinding rigidity

      3.Grinding spindle features low-maintenance preloaded high precision angular ball bearings (NSK P4 grade)

      4."V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance

      5.Table guideways are hardened, ground and counter-laminated with PTFE (TEFLON) to ensure high wear-resistance

      6.Centralized automatic lubrication system, supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times

      7.Separate hydraulic tank prevents heat and vibrations from being transferred to the machine

      8.Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible

      9.Safety 24V control circuit power

      Machine Structure

      Machine Internal Structure

      Electrical Cabinet

      Machine Part

      E.Application:

      Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

      The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

      Main Configuration of Grinding Machine

      Ⅰ.Spindle motor: Use ABB brand which from Sweden.

      Ⅱ.Spindle bearing: Use NSK brand P4 grade precision ball bearing which from Japan.

      Ⅲ.Cross and vertical screw: Use P3/P2 grade precision ball screw.

      Ⅳ.Main electrical components: Use SCHNEIDER brand.

      Ⅴ.Main hydraulic components: Use brand from TAIWAN.

      Ⅵ.Cross feed and down feed servo motor: Use SIEMENS brand.

      F.Company & Factory

      Nantong ZODE Machinery Manufacturing Co., Ltd. is a manufacturer engaged in the research and development, production, sales and service of CNC grinding machine equipment. The company adheres to the advanced production technology and technology in cooperation with Germany, and is committed to building a domestic high-quality grinding machine manufacturer. The company has an excellent R&D team, which serves precision grinding and can provide low-cost and high-efficiency solutions according to the actual grinding requirements of customers.

      ZODE Machinery has a huge distribution channel, and its products are sold all over the world. With "quality is the foundation, service is the foundation", it has won the trust and cooperation of global customers.

      In the future, ZODE people will continue to devote themselves to professional grinding solution providers and work together with partners to meet the ever-changing new challenges.

      ZODE

      Factory

      G.Delivery Picture

      Delivery

      H.FAQ

      Q: Are you trading company or manufacture?

      A: We are factory.

      Q: How long is your delivery time?

      A: Generally it is 10~20 days if the goods are in stock. Or it is 30~60 days if the goods are not in stock, according to your quantity.

      Q: Do you provide samples? Is it free or extra?

      A: Yes, we could offer the sample, but need extra cost.

      Q: What is your terms or payment?

      A: 30%T/T in advance, balance before shippment.
